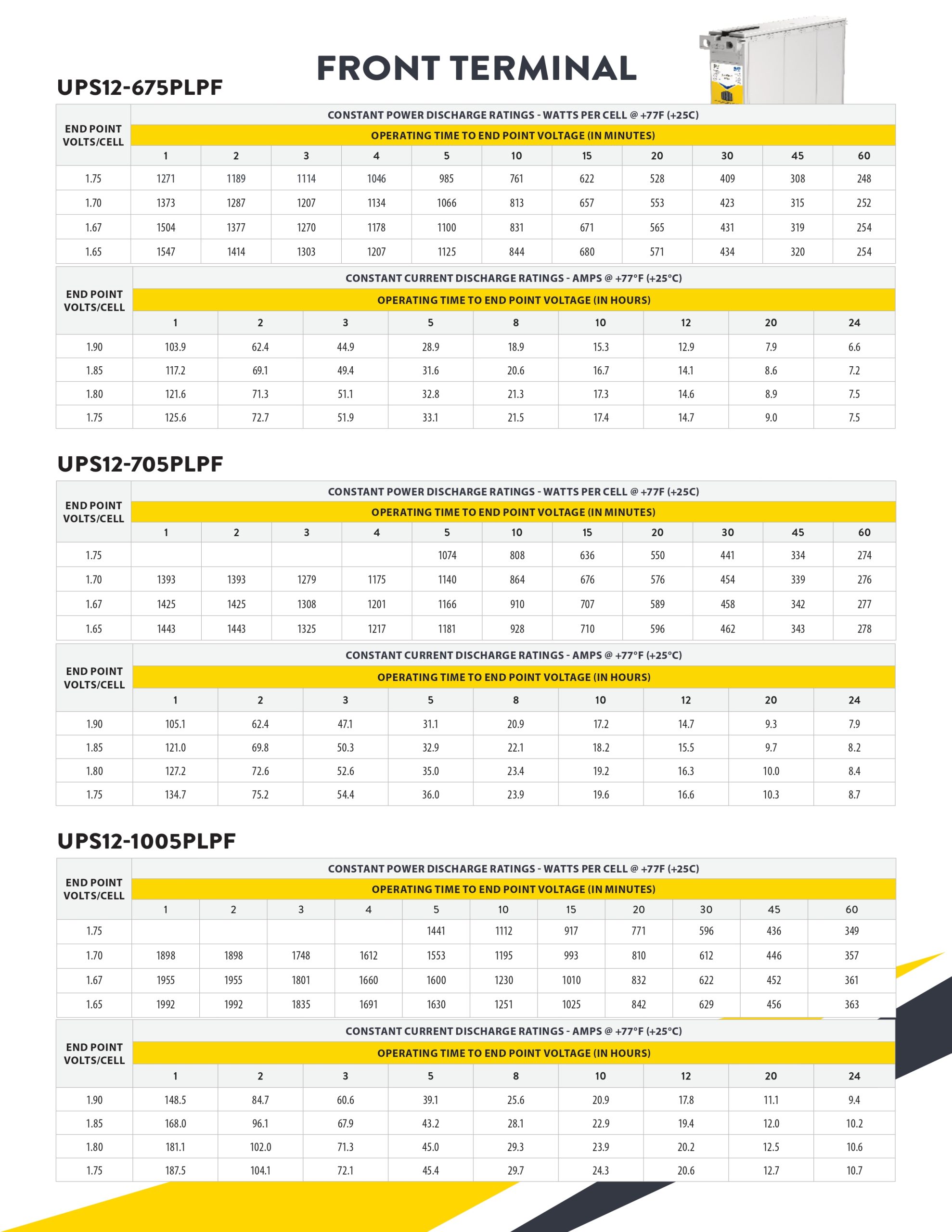

UPS12-675PLPF to UPS12-1005PLPF

Valve Regulated Lead Acid Battery
Designed for UPS Standby Power Applications.

APPLICATIONS

• Data Centers
• Network Operations Centers
• Industrial Process Control Facilities
• Internet Housing Sites
• Semiconductor Manufacturing
• Banks & Financial Markets
• Power Generation Plants
• Hospitals & Testing Laboratories
• Emergency 911 Response Centers

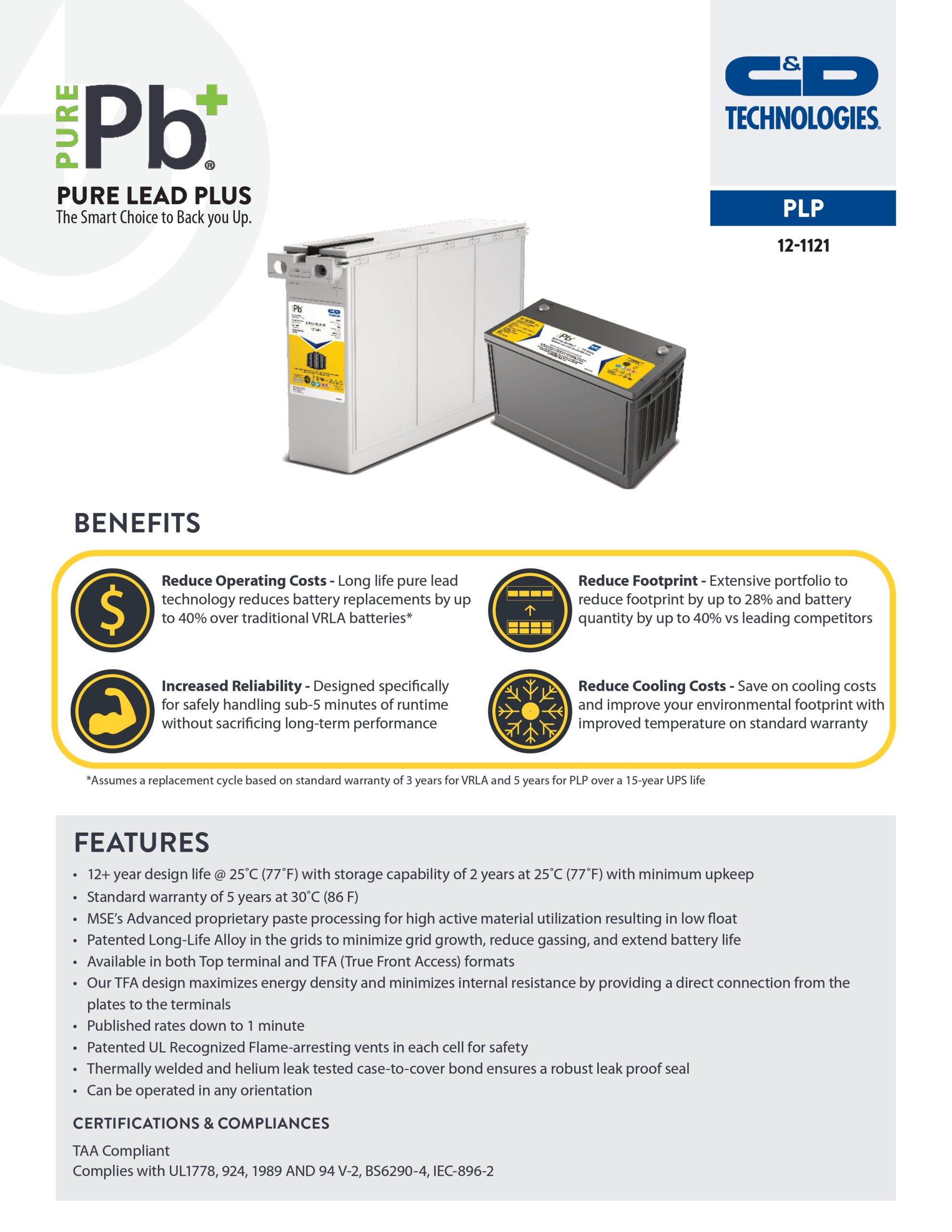

FEATURES and BENEFITS

  • 12+ year design life @ 25˚C (77˚F) with storage capability of 2 years at 25˚C (77˚F) with minimum upkeep
  • Standard warranty of 5 years at 30˚C (86 F)
  • MSE’s Advanced proprietary paste processing for high active material utilization resulting in low float
  • Patented Long-Life Alloy in the grids to minimize grid growth, reduce gassing, and extend battery life
  • Available in both Top terminal and TFA (True Front Access) formats
  • Our TFA design maximizes energy density and minimizes internal resistance by providing a direct connection from the plates to the terminals
  • Published rates down to 1 minute
  • Patented UL Recognized Flame-arresting vents in each cell for safety
  • Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal
  • Can be operated in any orientation

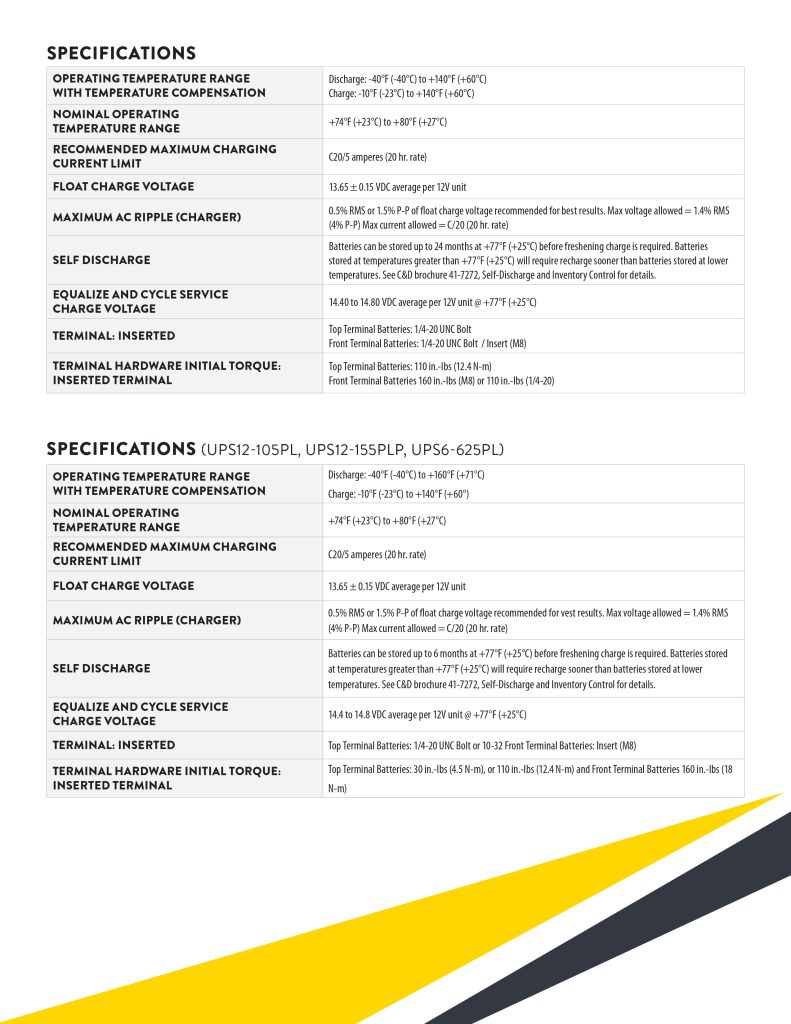

SPECIFICATION
